Rated Voltage 0.6/1KV PVC Insulation Cable
Scope：
Cables are applied to fixed installation in the rated AC voltage 0.6/1 kV cable shaft with high fall and withstand large mechanical force and tension of the fixed places of transmission and distribution power lines.
Cables are applied to fixed installation in the rated AC voltage 0.6/1 kV cable shaft with high fall and withstand large mechanical force and tension of the fixed places of transmission and distribution power lines.
Feature of product：
1 .Isulation Cores Identification follow color Sperations extruded.
2. Large Cross-section cable follow Fan-shaped desine, Stable Structure,light weight,small diameter.
3. High Chemical stability, not flame-retardant.
4. cables can withstand greater external mechanical forces and tension, simple laying and maintenance.
5 .Have good electrical properties and insulation.
6. Have excellent heat aging resistance and security
1 .Isulation Cores Identification follow color Sperations extruded.
2. Large Cross-section cable follow Fan-shaped desine, Stable Structure,light weight,small diameter.
3. High Chemical stability, not flame-retardant.
4. cables can withstand greater external mechanical forces and tension, simple laying and maintenance.
5 .Have good electrical properties and insulation.
6. Have excellent heat aging resistance and security

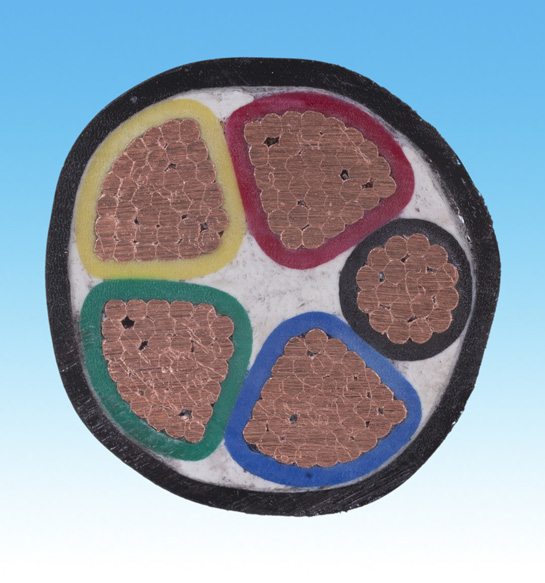

Schematic：
Technical Parameters：
1. Conductor DC resistance meet the GB / T3956-2008 required
2.The Properties of Finished Cables Insulation Can meet GB / T12706.1 requirement. And Should Withstand AC Voltage 3.5KV 5Minutes without breakdown.
Conditions of Use：
1.The ambient temperature for installation/Laying is not below 0 ℃, the bending radius should be not less than 10 times of cable diameter.
2.The Long-term Max temperature of Cable Conductor should be not exceed 70 ℃.
3. The Max temperature of Cable Conductor should be not exceed 160 ℃ in short Circuit(the longest duration of no more than 5S and temperature is 140 ℃ when Cable section is not less than 400mm2 ),
